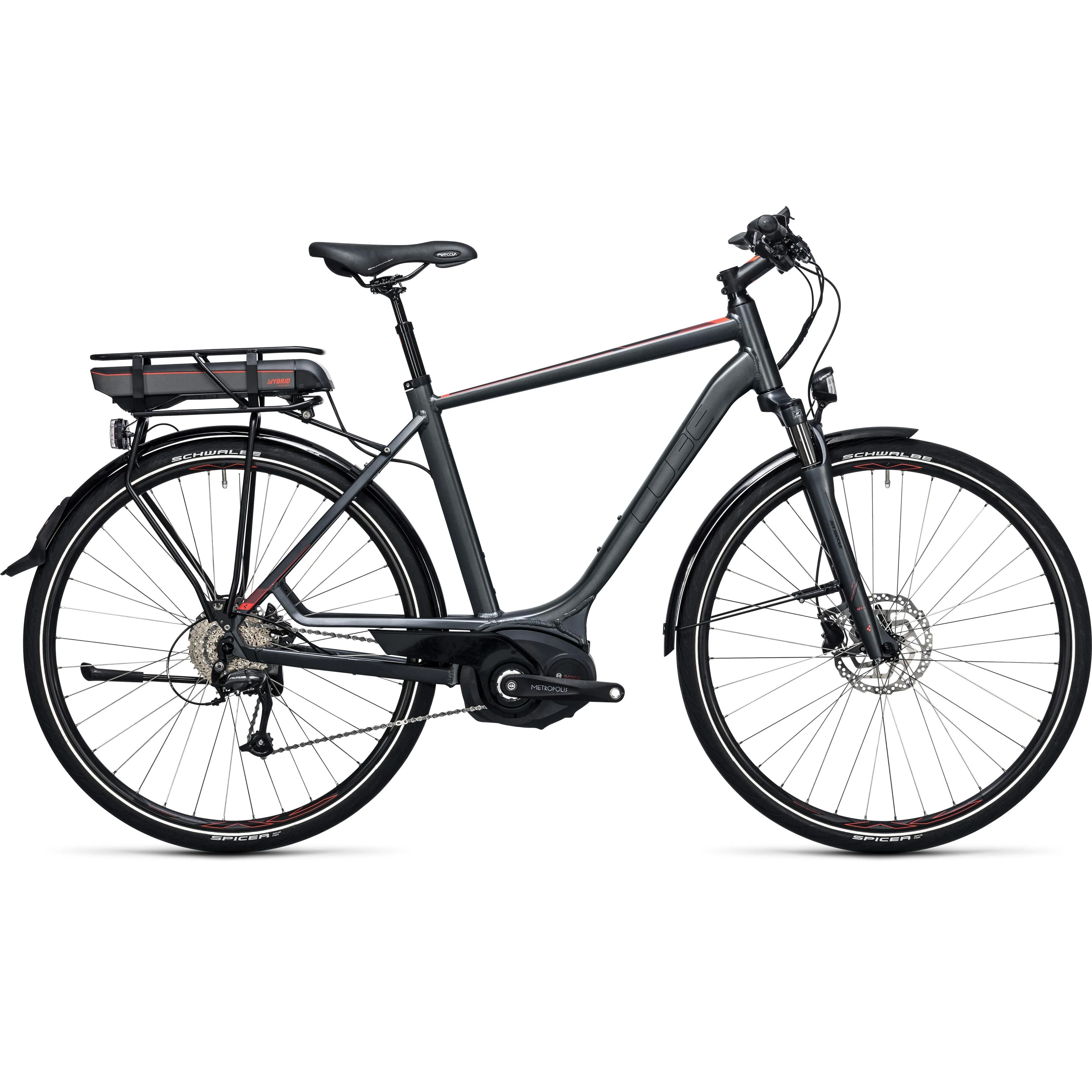

Cube Touring Hybrid 400 Electric Bike (2017)
A fun, versatile bike, the Touring Hybrid from Cube will get you out and about. The E-bike is also perfect for daily commuting, with an alumininium frame and a 400wh battery, putting the confidence back into riding.
FEATURES
- Easy Mount Kickstand
- Frame Safe system – Built with Frame Save System for added safety, allowing for easy replacement in the case of a crash.
- Integrated Cable Routing – Internal cable routing for a clean finish and pro-longed life.
- Wet Paint Surface – Multi-layer wet paint applied for weight saving.
Handy Information on purchasing an E-Bike as well as Information on Australian Legislation can be found here.
ABOUT THE TOURING HYBRID SERIES
ABOUT THE BOSCH PERFORMANCE LINE CX
SPECIFICATIONS
ABOUT THE BOSCH PERFORMANCE LINE CX
SPECIFICATIONS
SPECIFICATIONS
| FRAME | Aluminium Superlite, Trekking Hybrid Comfort, Double Butted |
| COLOR | grey´n´flashred |
| SIZE | Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58 |
| FORKS | R Suntour NEX-E25, 63mm |
| HEADSET | FSA No.10, Semi-Integrated |
| STEM | CUBE Performance Stem Pro, 31.8mm; EE: CUBE Comfort City Stem, 31.8mm |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm; EE: CUBE Comfort Shape Bar |
| GRIPS | CUBE Natural Fit Comfort |
| REAR DERAILLEUR | Shimano RD-M370-SGS, 9-Speed |
| SHIFTERS | Shimano SL-M370, Rapidfire-Plus |
| BRAKE SYSTEM | Shimano BR-M315, Hydr. Disc Brake (180/160) |
| CRANKSET | FSA Metropolis Urban AL-8, 15T |
| CASSETTE | Shimano CS-HG300, 12-36T |
| CHAIN | KMC X9 |
| RIMS | CUBE ZX20, 36H, Disc |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| TIRES | Schwalbe Range Cruiser, Active, K-Guard, 40x622 |
| PEDALS | CUBE PP Trekking |
| SADDLE | Selle Royal Freccia |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Hybrid Comfort Close, 31.8mm |
| FRONT LIGHT | Busch&Müller Lumotec Lyt B |
| BACKLIGHT | Busch&Müller Toplight Flat E Plus |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | SKS Black Shiny |
| CHAIN PROTECTION | CUBE Hybrid Chainguard |
| BELL | Humpert |
| CARRIER | Racktime SnapIt Bosch Carrier |
| BATTERY | Bosch PowerPack 400 |
| DISPLAY | Bosch Intuvia |
| Bosch 2A | |
| ENGINE | Bosch Drive Unit Active (48Nm) Cruise (250Watt) |
| WEIGHT | 23.9 kg |
COMPONENTS SUMMARY
- 400Wh battery
- 9-speed Shimano transmission and Shimano BR-M315 hydraulic disc brakes with their 180mm rotor on the front wheel.
- A CUBE suspension seatpost, combined with the Suntour NEX suspension fork for a comfortable ride whatever the terrain throws at you
- Schwalbe's Spicer tyres also provide increased puncture resistance.
- The Busch& Müller Lyt LED lighting system draws its power direct from the Bosch system and is easy to control via the display.
- Custom-developed CUBE chain guide keeps oil and grime where it belongs - off your clothes - inconspicuosly and with utter reliability.
ENGINE/MOTOR SPECIFICATIONS: BOSCH ACTIVE LINE
Drive Unit:
| Cruise 25 km/h, Hub gear | Cruise 25 km/h, Derailleur gear | |
| Gear shift detection | No | Yes |
| Maximum assistance Speed | 25 km/h | 25 km/h |
| Torque | 48 Nm | 48 Nm |
| Backpedal function | Optional | No |
| Weight | < 4 kg | < 4 kg |
Drive Display Mode
| Mode | |
| Turbo | · Maximum power assist even at the highest pedaling frequencies for sport riding |
| · At 100 % personal pedal power, the motor contributes an additional 225 % | |
| Sport | · Immediate power assist for sport riding |
| · At 100 % personal pedal power, the motor contributes an additional 150 % | |
| Tour | · Consistent power for long tours |
| · At 100 % personal pedal power, the motor contributes an additional 100 % | |
| Eco | · Effective power for maximum range |
| · At 100 % personal pedal power, the motor contributes an additional 40 % | |
| Off | No support |
Battery
| PowerPack 300 | PowerPack 400 | |
| Mounting type | Frame battery / Rack battery | Frame battery / Rack battery |
| Voltage (V) | 36 V | 36 V |
| Capacity (Ah) | 8,2 Ah | 11 Ah |
| Energy content (Wh) | 300 Wh | 400 Wh |
| Weight (kg) | 2,0 kg / 2,4 kg | 2,5 kg / 2,6 kg |
Charger
| Charging time (at 4A) | 50% charge | 80% charge | 100% charge |
| PowerPack 300 | 1 h | 1.5 h | 2.5 h |
| PowerPack 400 | 1.5 h | 2 h | 3.5 h |
